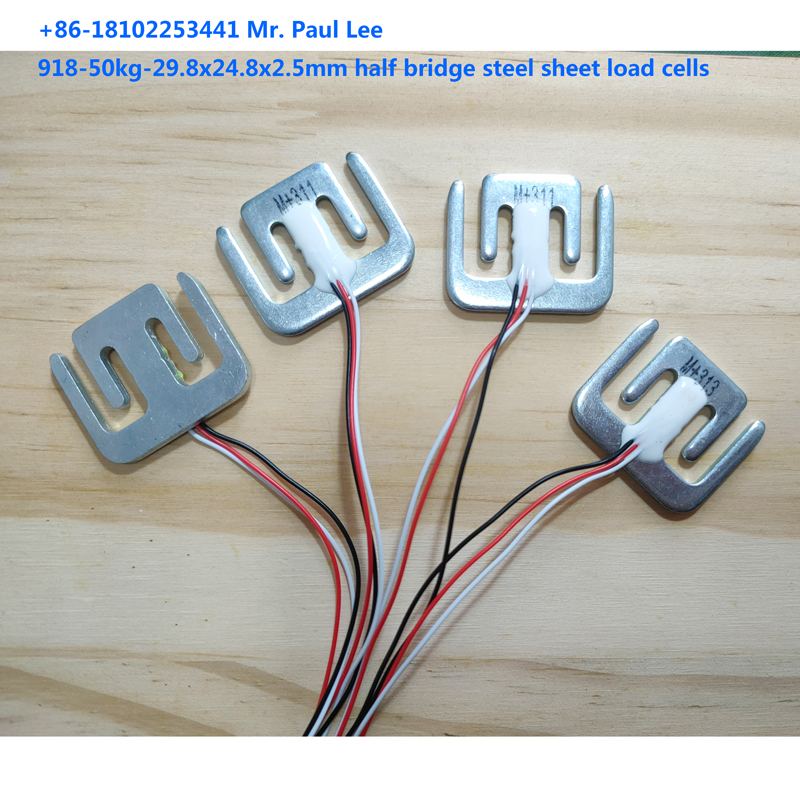

Name: 918-50kg half bridge steel sheet load cell
SKU: 918-50kg-30x25x2.5mm
Availability: InStock

918-50kg half bridge steel sheet load cell

+ Free Shipping

918-50kg -30x25x2.5mm half-bridge Steel Loadcell for body scale and smart machine.

量程	Rated load	50	kg
输出灵敏度	Output sensitivity	1.5±0.2	mV/V
零点输出	Zero balance	±1.0	mV/V
线性	Linearity	±0.05	%F.S
滞后	Hysteresis	±0.05	%F.S
重复性	Repeatability	±0.05	%F.S
蠕变	Creep	±0.05	%F.S（3min）
输出阻抗	Output resistance	1000±10	Ω
绝缘阻抗	Insulation resistance	2000	MΩ
温度灵敏度漂移	Temp.effect on span	±0.05	%F.S/10℃
零度温度漂移	Temp.effect on zero	±0.05	%F.S/℃
推荐电压	Excitation voltage	3～10	VDC
使用温度范围	Use temp.range	0～ +40	℃(Room temperature）
安全过载	Safe overload	120%	%F.S
综合精度	Comprehensive accuracy	±0.05	%F.S
引线规格	Lead wire specifications	ф0.8*220 mm	Length can be customized
接线方式	Wiring	Red，（Public Line）Black，White（Adjacent same color welding）
防护等级	Defend grade	IP65
精度等级	Precision	G3	≤ ±0.3%
绝缘电阻	Insulation resistance	≥2000	MΩ

This is 928D-10kg full bridge steel sheet load cell for body scale and smart machine.

Dimensions	30 × 25 × 2.5 mm
