Sale!

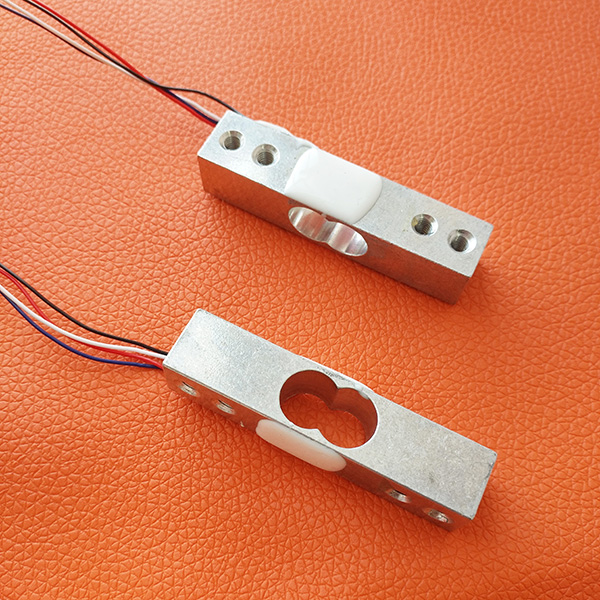

5kg Aluminum Load cell for Kitchen Scale

Aluminum Load Cells-1

5kg Aluminum Load cell for Kitchen Scale

Original price was: $2.45.Current price is: $2.05.

+ Free Shipping

611N-5kg 80×12.7×12.7mm Aluminum Loadcell for Kitchen Scale

SKU: 611N-5kg Category: Aluminum Load Cells-1 Tag: 5kg sensor

量程	Rated load	5	kg
输出灵敏度	Output sensitivity	1.0±0.2	mV/V
零点输出	Zero balance	±1.0	mV/V
线性	Linearity	±0.05	%F.S
滞后	Hysteresis	±0.05	%F.S
重复性	Repeatability	±0.05	%F.S
蠕变	Creep	±0.05	%F.S（3min）
输出阻抗	Output resistance	1000±10	Ω
绝缘阻抗	Insulation resistance	2000	MΩ
温度灵敏度漂移	Temp.effect on span	±0.05	%F.S/10℃
零度温度漂移	Temp.effect on zero	±0.05	%F.S/℃
推荐电压	Excitation voltage	3～10	VDC
使用温度范围	Use temp.range	0～ +40	℃(Room temperature）
安全过载	Safe overload	120%	%F.S
综合精度	Comprehensive accuracy	±0.05	%F.S
引线规格	Lead wire specifications	ф0.8*220 mm	Length can be customized
接线方式	Wiring	Red，E+；Black，E-；Green，S+；White，S-
防护等级	Defend grade	IP65
精度等级	Precision	C1	≤ ±0.050% (OIML 1000 Divisions)
绝缘电阻	Insulation resistance	≥2000	MΩ

This is YZL611N-5kg-80×12.7×12.7mm Aluminum Loadcell for Kitchen Scale.

Weight	32.5 g
Dimensions	80 × 12.7 × 12.7 mm
