Sale!

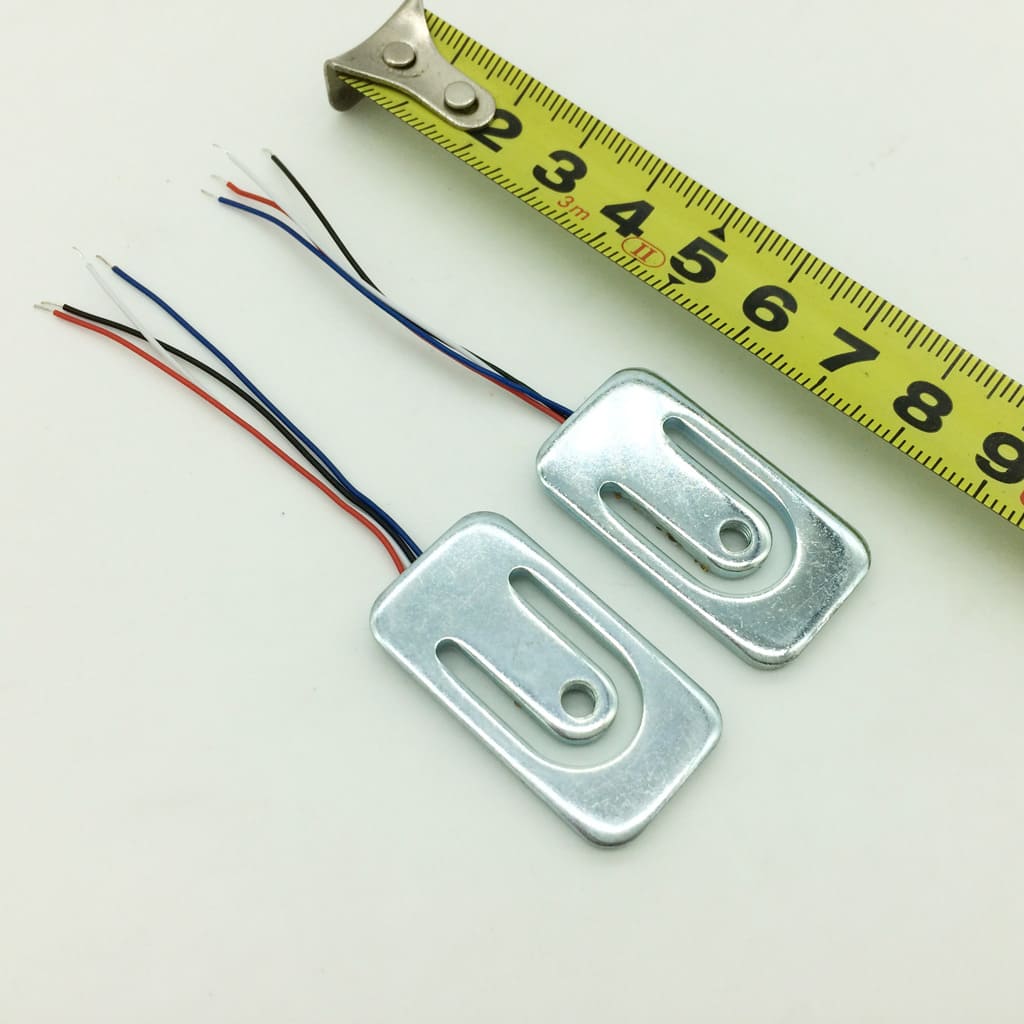

50kg Steel Loadcell for hook scale

Steel Sheet Load Cells-1

50kg Steel Loadcell for hook scale

Original price was: $1.75.Current price is: $1.05.

+ Free Shipping

50kg -35x19x3.0mm Steel Loadcell for hook scale.

SKU: 707F Category: Steel Sheet Load Cells-1 Tag: 50kg steel loadcell

量程	Rated load	50	kg
输出灵敏度	Output sensitivity	1.2±0.2	mV/V
零点输出	Zero balance	±1.0	mV/V
线性	Linearity	±0.05	%F.S
滞后	Hysteresis	±0.05	%F.S
重复性	Repeatability	±0.05	%F.S
蠕变	Creep	±0.05	%F.S（3min）
输出阻抗	Output resistance	1000±10	Ω
绝缘阻抗	Insulation resistance	2000	MΩ
温度灵敏度漂移	Temp.effect on span	±0.05	%F.S/10℃
零度温度漂移	Temp.effect on zero	±0.05	%F.S/℃
推荐电压	Excitation voltage	3～10	VDC
使用温度范围	Use temp.range	0～ +40	℃(Room temperature）
安全过载	Safe overload	120%	%F.S
综合精度	Comprehensive accuracy	±0.05	%F.S
引线规格	Lead wire specifications	ф0.8*55 mm	Length can be customized
接线方式	Wiring	Red，E+；Black，E-；Green，S+；White，S-
防护等级	Defend grade	IP65
精度等级	Precision	G3	≤ ±0.3%
绝缘电阻	Insulation resistance	≥2000	MΩ

This is 50kg -35x19x3.0mm Steel Loadcell for hook scale.

Dimensions	35 × 19 × 3.0 mm
